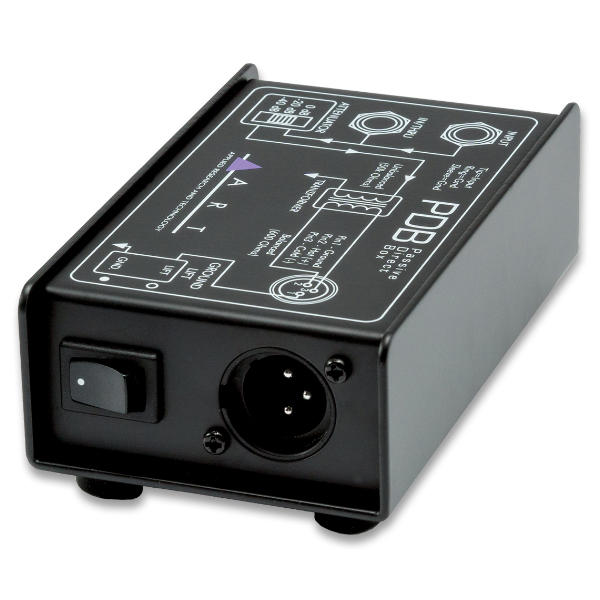

The PDB is a passive direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs.
The input signal is sent to a transformer-isolated XLR output and a parallel Thru jack, so it can simultaneously be connected to an amplifier on stage.
A switchable ground lift helps to eliminate hum, and switchable attenuation offers up to 40 dB of gain reduction.
As a fully passive design, the PDB doesn’t require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps.
Packed into a stage-proof steel enclosure, the PDB provides a high-fidelity connection to a mixer, PA system, or audio interface.
Features :
- 1/4" TS Input and Thru Connectors
- Balanced XLR Output
- Switchable Attenuation (-20 dB, -40 dB) and Ground Lift
- Passive Design - No Power Required
- Rugged Steel Case
- Active or Passive : Passive
- Inputs : 1x 1/4" TS
- Outputs : 1x XLR
- 1x 1/4" : TS Thru
- Input Impedance : 50 kΩ
- Output Impedance : 600Ω
- Controls : Attenuator (0 dB, -20 dB, -40 dB) Ground Lift
- Frequency Response : 10 Hz - 50 kHz +/- 0.5 dB @ +4 dBu
