Alesis MultiMix 4 USB FX 4-Channel Mixer with Effects and USB Audio Interface (Multi Mix)

Alesis MultiMix 4 USB FX 4-Channel Mixer with Effects and USB Audio Interface (Multi Mix)

Desktop Audio, Solved

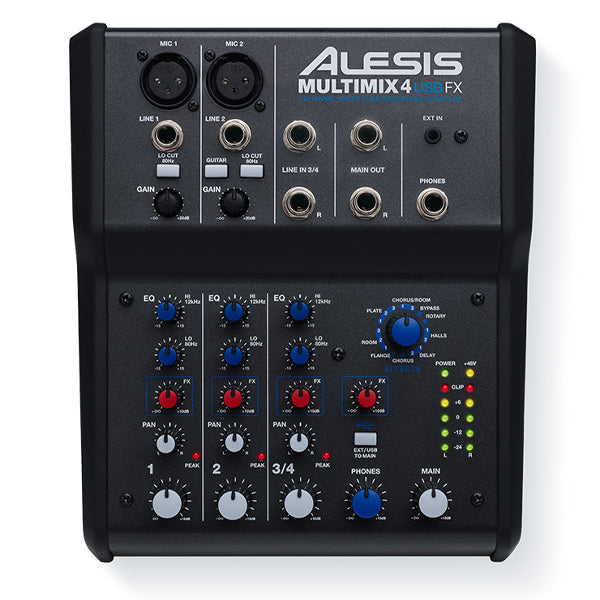

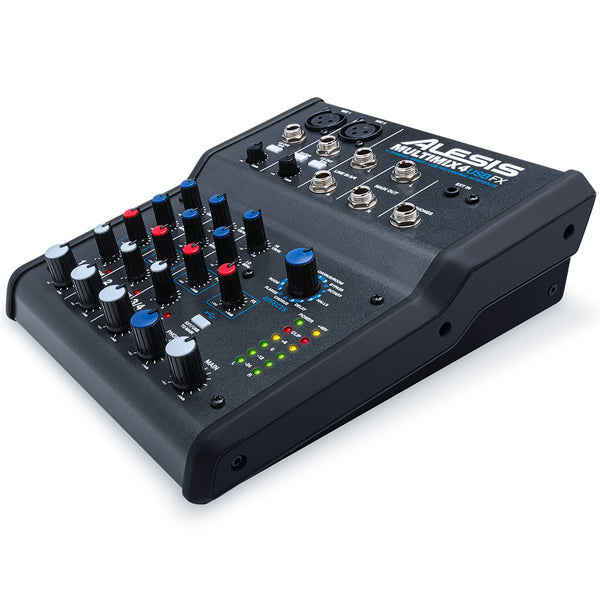

MultiMix 4 USB FX is a four-channel desktop mixer with a USB digital audio interface that lets you mix live, in the home studio, and record audio directly to a computer. This compact mixer is perfect for computer-recording setups, intimate live-sound environments, video-editing and production studios, and portable podcasting setups. It outputs line-level analog audio and stereo 16-bit, 44.1/48 kHz digital audio over USB for recording low-noise, CD-quality mixes directly to your Mac or PC. The MultiMix 4 USB FX mixer has four input channels, all of which can accept a 1/4" line input. You can plug XLR microphones into channels one and two, including condensers thanks to the selectable 48V-phantom power supply. You can also plug a guitar or bass directly into channel two's switchable high-impedance input. A stereo, 1/4" headphone output has its own level control for private monitoring. Ideal for live sound engineering or home recording, MultiMix 4 USB FX features onboard volume, pan, and EQ controls for making quick, accurate adjustments to your mix. The MultiMix 4 USB FX mixer has a two-channel, five-stage, multicolor LED meter for visual monitoring the main output level. Channels one and two offer switchable high-pass filtering at 75Hz to reduce low-frequency rumble, handling, and wind noise. Channels one and two provide high- and low-shelving EQs, independent gain trims, and have independent pan controls. For convenient stereo mixing and recording, channels three and four are configured as a stereo pair at the level, EQ and pan controls.

Record Via USB

MultiMix 4 USB FX contains a complete USB recording interface. Plug the MultiMix 4 USB FX’s class-compliant USB connection into your Mac or PC without the need for software drivers and enjoy a digital-direct stereo connection with virtually any audio software application. The MultiMix 4 USB FX enables bidirectional stereo playback, so you can record the stereo Main output into your computer and listen back using the mixer as an interface from software to headphones and monitoring loudspeakers. Plus, you can record stereo audio directly to your iPad with the Apple iPad Camera Connection Kit (sold separately).

Built-in Effects

MultiMix 4 USB FX comes with high-quality Alesis DSP effects that include spacious reverbs, delays, phasers and much more. For lush mixes, the internal effects processors enables you to add extra depth to live sound--like a long delay on the vocalist's channel--or beef up dry recordings with some extra ambiance.

Professional Software Suite

The MultiMix 4 USB FX includes all the software you need to begin your production. This special bundle includes the AIR Mini Grand virtual piano, DB-33 virtual organ and Eleven Lite, with over 20 high-quality guitar, amp and effect models.

Specification :

• Line (CH 1, 2): 10 KΩ input impedance 5.5 mV ~ 4.9 V RMS sensitivity for max output
• Mic (CH 1, 2): 600 Ω input impedance balanced 700 mV RMS sensitivity for max output
• Line (CH 3, 4): 700 mV RMS sensitivity for max output
• HPF (CH 1, 2): 200 Hz (-1 dB), 80 Hz (-3 dB), 20 Hz (-24 dB)
• Line: 7 V RMS max
• Headphone: 0.5 W into 47 Ω
• Line: > 92 dB
• (max output; JIS A-weighted) Mic: > 62 dB
• Frequency Response: Line: 20 Hz – 20 kHz (± 0.5 dB), Mic: 20 Hz – 15 kHz (± 0.5 dB)
• Channel Equalizer: Bass: ± 14 dB @ 80 Hz, Treble: ± 14 dB @ 12 kHz
• Channel Fader Kill: > 90 dB @ 1 kHz
• Crosstalk: > 85 dB @ 1 kHz
• Interface: USB 1.1 or higher (stereo in and stereo out)
• Power Adapter: 18 VDC, 800 mA
• Weight: 1.5lb
• Dimensions: 7 3/4 L x 6 W x 2" H
